Writing Equation in Blogger using LaTeX - Mathtex3.js

  • Using WYSIWYG Equation editor and Mathtex3.js for Beginner User
Creating LaTeX renderer for Blogger
For inserting an equation to a posting in a simple way, we need to make sure that LaTeX code can be rendered in the blog. Please follow the steps bellow:
    - Copy (to clipboard) the following script using block and ctrl-c

    <script src="http://www.watchmath.com/cgi-bin/mathtex3.js" type="text/javascript"></script>
    <script type="text/javascript">
    replaceMath( document.body );</script>

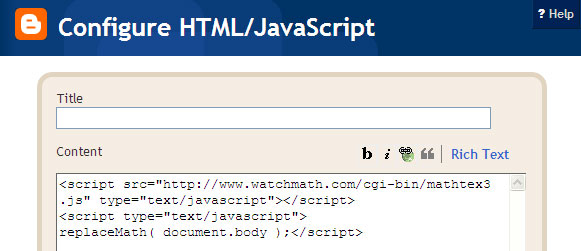

    - Add a HTML/Script footer Gadget by accessing your Dashboard and choose Layout>>Page Element, and then click the hyperlink Add a Gadget in the bottom of the layout, followed by selecting HTML/JavaScript gadget. In the popup windows paste the script which is copied before, so that it is like the picure bellow:
    Click save with out typing any title. Then save the Page Elements.

    Creating WYSIWYG Equation Editor
    Latex code is quite complex to remember because it is like programming script. Since we prefer works in the GUI environment, we need WYSIWYG (What You See Is What You Get) Equation Editor. The steps bellow will show you how to make a Blogger Gadget for equation editor:
    - Copy the following script:

    <script type="text/javascript" src="http://latex.codecogs.com/editor.js"></script>
    <p align="center" style="margin-top: 0; margin-bottom: 0"><font face="Arial">
    Sample:
    <a href="javascript:OpenLatexEditor('testbox','latex','')">
    <img src="http://www.codecogs.com/gif.latex?\sum_{i=1}^{n}{(X_i - \overline{X})^2}"
    align="middle" /></a></font></p>
    <p align="center" style="margin-top: 0; margin-bottom: 0"><b><font face="Arial">
    <a href="javascript:OpenLatexEditor('testbox','latex','')">
    Launch
    Editor</a></font></b></p>
    <p align="center" style="margin-top: 0; margin-bottom: 0">
    <textarea id="testbox" rows="10" cols="20"></textarea></p>
    <p align="center" style="margin-top: 0; margin-bottom: 0">
    <a href="http://www.codecogs.com" target="_blank">
    <img src="http://www.codecogs.com/images/poweredbycc.gif" border="0"
    title="CodeCogs - An Open Source Scientific Library"
    alt="CodeCogs - An Open Source Scientific Library" /></a>
    <p style="margin-top: 0; margin-bottom: 0" align="center"><font size="1"><font face="Arial">
    <a href="http://a2mstats.blogspot.com/">Aam Sudrajat</a></font> </font>
    </p>



    - Add a HTML/Script footer Gadget by accessing your Dashboard
    - Paste the copied script in the content, and you can give Equation Editor as the Title.
    - Save the gadget and the Page Elements.

    Inserting LaTeX code in a Posting
    Because the equation editor is not embedded in the posting editor, we should keep the page contained it and open a new window/tab for creating/editing a posting. Then follow these steps:
    - Open Equation Editor by clicking the Lauch Editor link.


    - Create an equation by click the symbol or samples of equation





    - Click Copy to Document, the the windows will directly change to the main page where the equation editor gadget is.

    - Copy the code from the box by blocking and copying
    - Paste the code to the posting editor either in Compose or Edit HTML mode.
    - Publish your post
    \[ x = a_0 + \frac{1}{a_1 + \frac{1}{a_2 + \frac{1}{a_3 + a_4}}}\]

    • Using Mathtex3.js for Advanced User
    Basically all the code can be used in a posting after adding a HTML/Script footer Gadget containing Mathtex3.js. You may read Short Math Guide for LATEX  for looking up the type set.Here some example codes:

    \frac{{\displaystyle\sum\nolimits_{n> 0} z^n}}{{\displaystyle\prod\nolimits_{1\leq k\leq n} (1-q^k)}}

    \[\frac{{\displaystyle\sum\nolimits_{n> 0} z^n}}{{\displaystyle\prod\nolimits_{1\leq k\leq n} (1-q^k)}}\]

    V = \frac{k_2{[E]}+{[S]}}{K_m + {[S]}}}
    \[V = \frac{k_2{[E]}+{[S]}}{K_m + {[S]}}\]

    6CO_2 + 6H_2O \xrightarrow{Light Energy} C_6H_{12}O_6 + CO_2 \ \delta G^{\circ} = +2870kJ/mol
    \[6CO_2 + 6H_2O \xrightarrow{Light Energy} C_6H_{12}O_6 + CO_2 \ \delta G^{\circ} = +2870kJ/mol\]

    Sources:
    Codecog (2009). LaTeX Equation Editor v2.96 Installation. Retrieved 15 April, 2010, from http://www.codecogs.com/latex/install.php

    Downes, M. (2002). Short Math Guide for LATEX. Retrieved 15 April, 2010, from ftp://ftp.ams.org/pub/tex/doc/amsmath/short-math-guide.pdf

    WatchMath (2010). How To Install Latex On Blogger/Blogspot. Retrieved 15 April, 2010, from http://watchmath.com/vlog/?p=438
